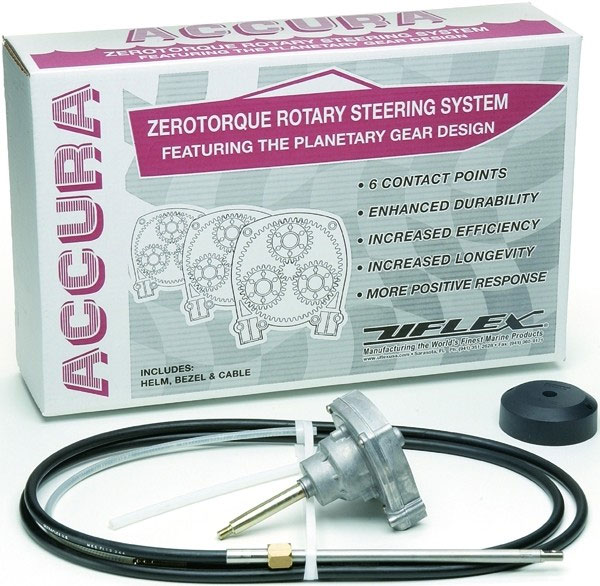

Uflex Rotary Steering System Packaged in a Box - Non Reversible
With a patented spring clutch that Accura eliminates continuous loads on
the steering wheel while the direction of the boat is not being
actively changed, which is highly recommended for outboard and
sterndrives without power assist. The T73FC helm included with the Accura package
also features a Planetary Gear Design for smooth and more balanced
steering effort. A direct drop in replacement for competing systems, the
Accura comes with the M66 Universal Rotary Steering Cable with
stainless steel output fittings for maximum longevity and smooth
steering. A convenient kit form, especially suitable as replacement steering, that
includes helm, bezel and cable. The cable is available in 1-ft increments from 8
to 20 feet (specify cable length when ordering). The wheel is not
included. Click here for how to measure for replacement cable
This kit includes:
T73NR FC - helm
X34 - 90° bezel (diameter is 5 1/8")
M66 - steering cable
Features and Technical Specifications:
Cable Entry can be set from either Port or Starboard sides
Fast connect, simple installation
All stainless steel cable output ends
Corrosion resistant materials
Particularly suitable where clearance is limited
Optional 90° or 20° installation
Standard 3/4” tapered shaft
Lock-to-lock steering wheel turns: approx. 3,8
Stroke: 9” (228 mm)
Maximum allowable steering wheel diameter: 16” (406 mm)
Minimum steering cable bend radius: 7.9” (200 mm)
Minimal feedback
Compact for mounting
T71FC steering systems are not to be used on boats equipped with engines
that exceed the maximum horsepower rating of the boat.
For boats faster than 50 mph the twin cable steering system T72FC is
recommended
