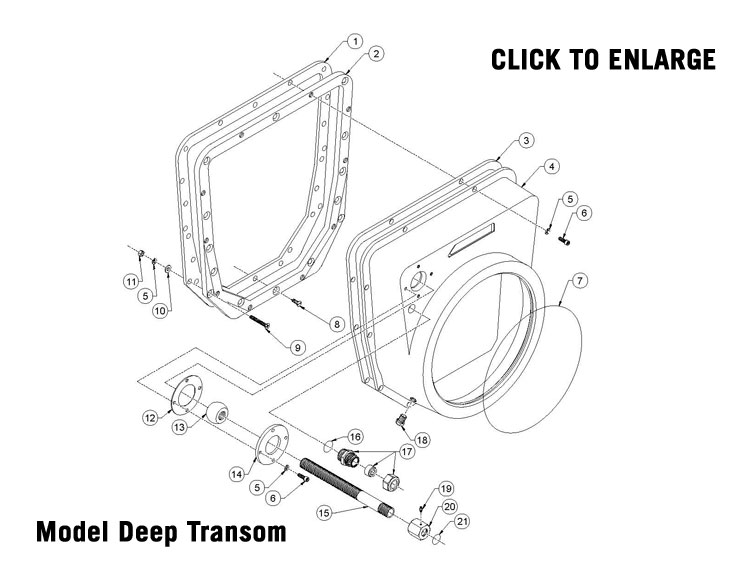

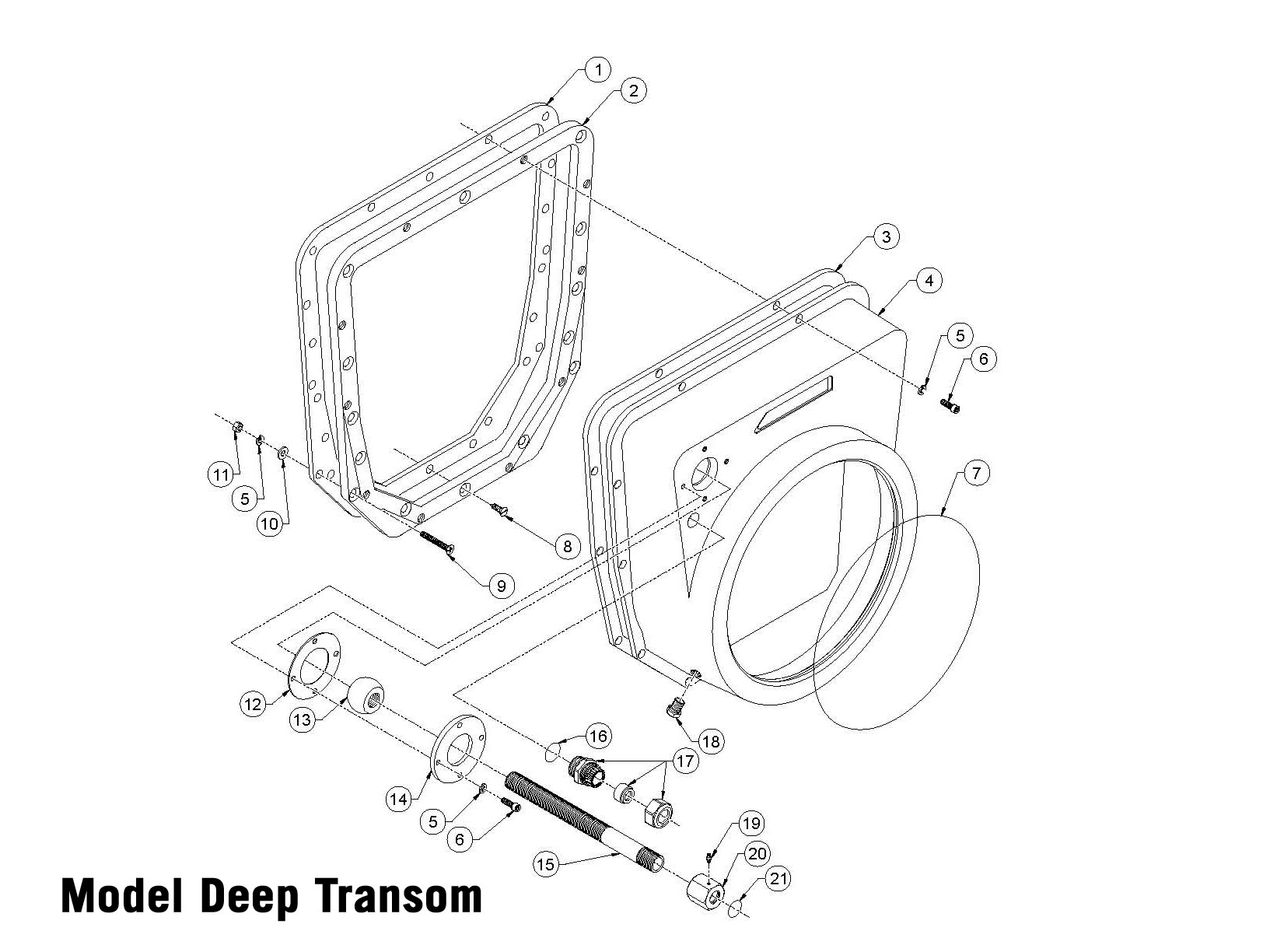

American Turbine Model Deep Transom Housing

Deep Transom Housing

PART # TK1001

SYM.
DESCRIPTION
QTY.
PART NO.
1
GASKET, TRANSOM
1
152-G3601
2
TRANSOM RING
1
152-T1601
3
GASKET, TRANSOM RING
1
152-G3501
4
TRANSOM HOUSING
1
152-T1001
5
LOCKWASHER, 1/4
27
152-F04 LW
6
SHCS, 1/4-20 X 7/8
14
152-F04 20 07 SH
7
TRANSOM O-RING
1
152-O1201
8
WOOD SCREW, #14 X 1
1
152-F04 08 WS
9
FHMS, 1/4-20 X 2
13
152-F04 20 16
10
FLAT WASHER, 1/4
13
152-F04 FW
11
HEXNUT, 1/4-20
13
152-F04 20 HN
12
FLANGE GASKET
1
152-G4001
13
STEERING TUBE BALL
1
152-T2601
14
BALL FLANGE
1
152-T2701
15
STEERING TUBE
1
152-T3007
16
O-RING, CABLE PACKER
1
152-O3001
17
REVERSE CABLE PACKER
1
152-T2101
18
DRAIN PLUG
1
152-T3501
19
GREASE ZERT
1
152-M4801
20
STEERING TUBE SEAL
1
152-T3107
21
O-RING, STR. TUBE SEAL
1
152-O3501
