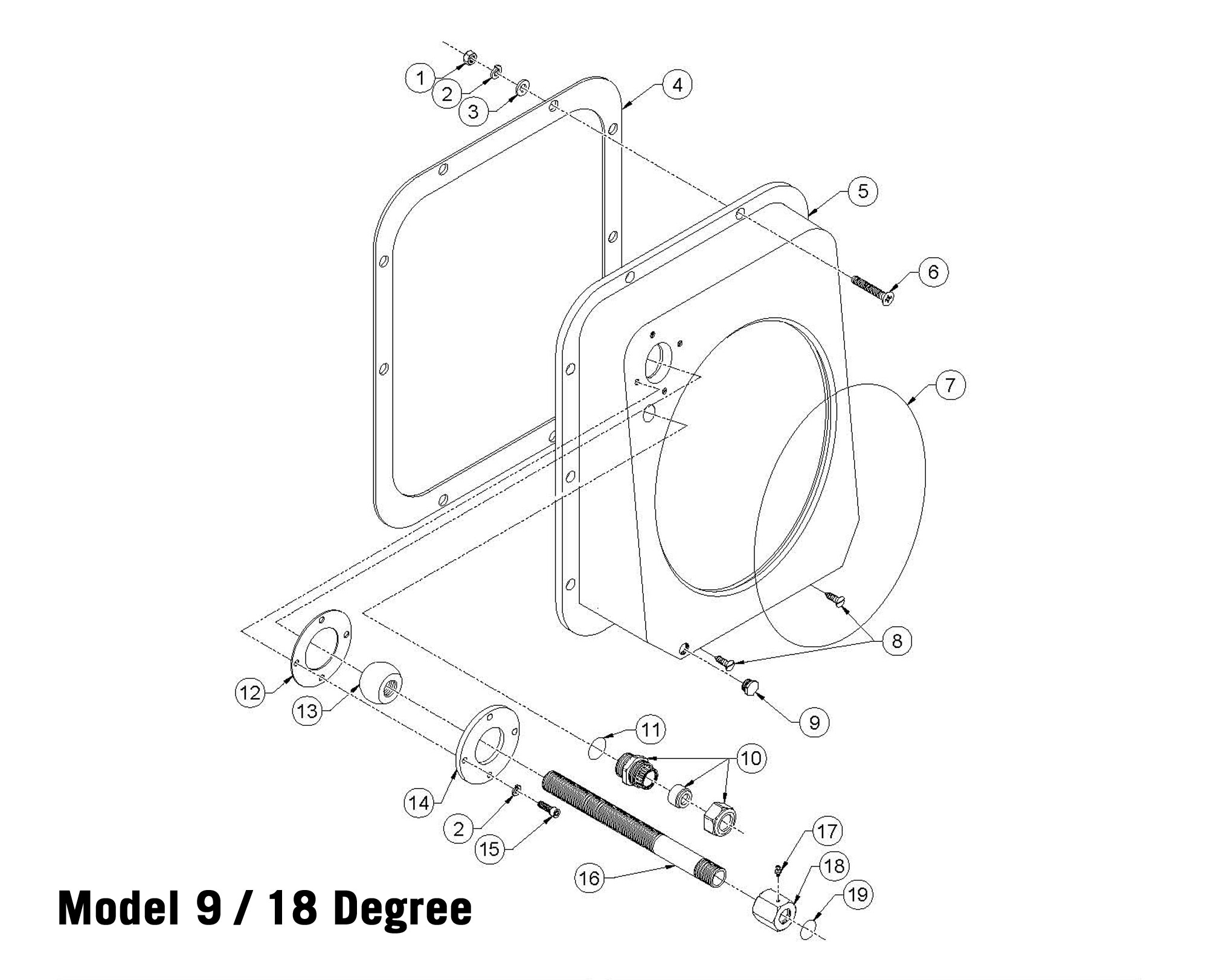

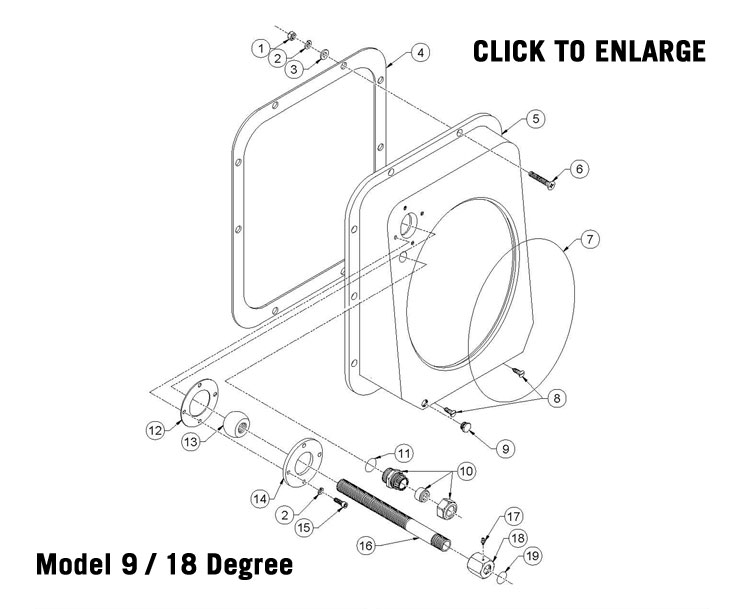

American Turbine Model 9 / 18 Degree Transom Housing
9 / 18 Degree Transom Housing
PART # TK1105
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
HEXNUT, 1/4-20 |
8
|
152-F04 20 HN |
|
2
|
LOCKWASHER, 1/4 |
12
|
152-F04 LW |
|
3
|
FLAT WASHER, 1/4 |
8
|
152-F04 FW |
|
4
|
TRANSOM GASKET |
1
|
152-G3001 |
|
5
|
TRANSOM HOUSING |
1
|
152-T1105 |
|
6
|
FHMS, 1/4-20 X 2 |
8
|
152-F04 20 16 FH |
|
7
|
O-RING |
1
|
152-O1201 |
|
8
|
WOOD SCREW, #14 X 1 |
2
|
152-F04 08 WS |
|
9
|
BRASS DRAIN PLUG |
1
|
152-T3501 |
|
10
|
REVERSE CABLE PACKER |
1
|
152-T2101 |
|
11
|
O-RING REV CABLE PACKER |
1
|
152-O3001 |
|
12
|
STEERING MOUNT GASKET |
1
|
152-G4001 |
|
13
|
STEERING TUBE BALL |
1
|
152-T2601 |
|
14
|
BALL FLANGE |
1
|
152-T2701 |
|
15
|
SHCS, 1/4-20 X 7/8 |
4
|
152-F04 20 07 SH |
|
16
|
STEERING TUBE |
1
|
152-T3007 |
|
17
|
GREASE ZERK |
1
|
152-M4801 |
|
18
|
STEERING TUBE SEAL |
1
|
152-T3107 |
|
19
|
O-RING, STEERING TUBE SEAL |
1
|
152-O3501 |
