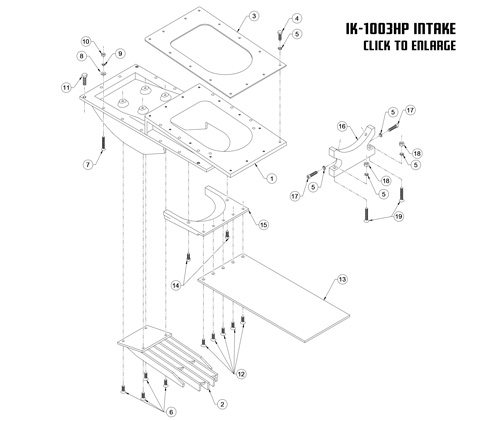

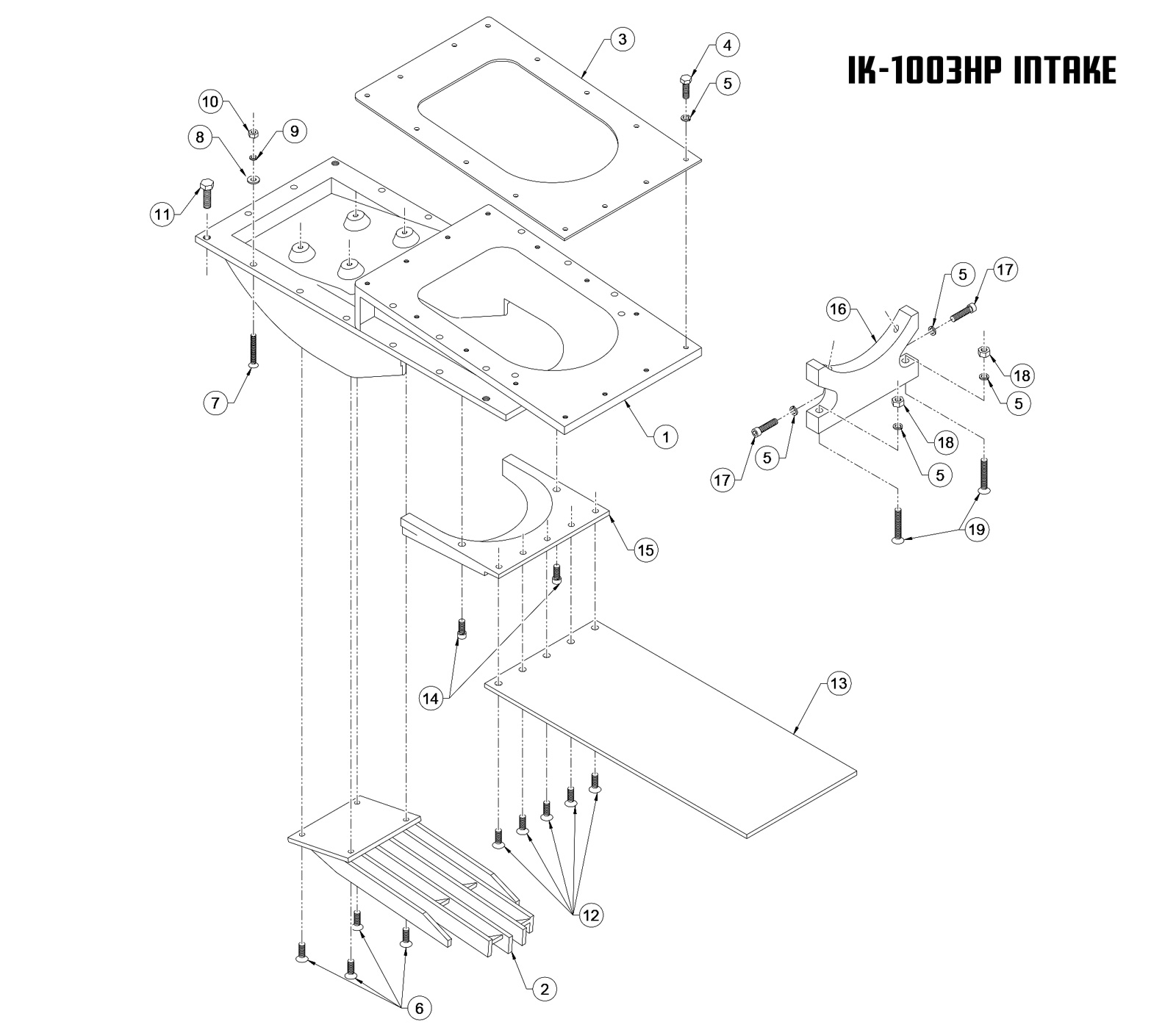

American Turbine Model 12-S HP Fiberglass Intakes
12-S HP Fiberglass Boat
PART #IK-1003HP
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
INTAKE |
1
|
152-I1003HP |
|
2
|
SPEED GRATE |
1
|
152-I4007 |
|
3
|
INTAKE GASKET |
1
|
152-G1006 |
|
4
|
HHCS, 5/16-18 X 1-1/4 |
14
|
152-F05 18 10 HH |
|
5
|
LOCKWASHER, 5/16 |
18
|
152-F05 LW |
|
6
|
FHMS, 5/16-18 X 3/4 |
4
|
152-F05 18 06 FH |
|
7
|
FHMS, 1/4-20 X 2 |
14
|
152-F04 20 16 FH |
|
8
|
AN WASHER, 1/4 |
14
|
152-F04 AN |
|
9
|
LOCKWASHER, 1/4 |
14
|
152-F04 LW |
|
10
|
HEX NUT, 1/4-20 |
14
|
152-F04 20 HN |
|
11
|
HHCS, 3/8-16 X 1-1/4 |
4
|
152-F06 16 10 HH |
|
12
|
FHMS, 5/16-18 X 1 |
5
|
152-F05 18 08 FH |
|
13
|
RIDEPLATE |
1
|
152-I6607 |
|
14
|
SHCS, 5/16-18 X 1/2 |
2
|
152-F05 18 04 SH |
|
15
|
SHOE |
1
|
152-I6*** |
|
16
|
YOKE |
1
|
152-I7003 |
|
17
|
SHCS, 5/16-18 X 1-1/4 |
2
|
152-F05 18 10 SH |
|
18
|
HEX NUT, 5/16-18 |
2
|
152-F05 18 HN |
|
19
|
FHMS, 5/16-18 X 2 |
2
|
F05 18 16 FH |
