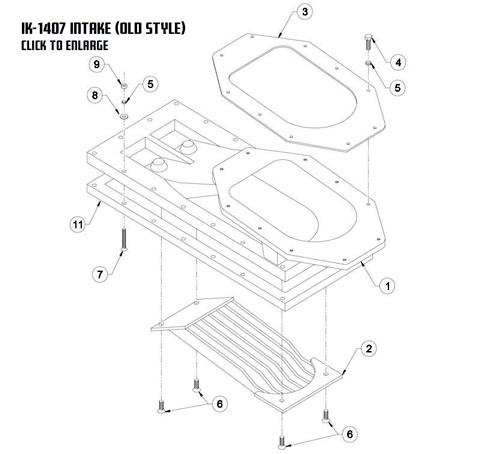

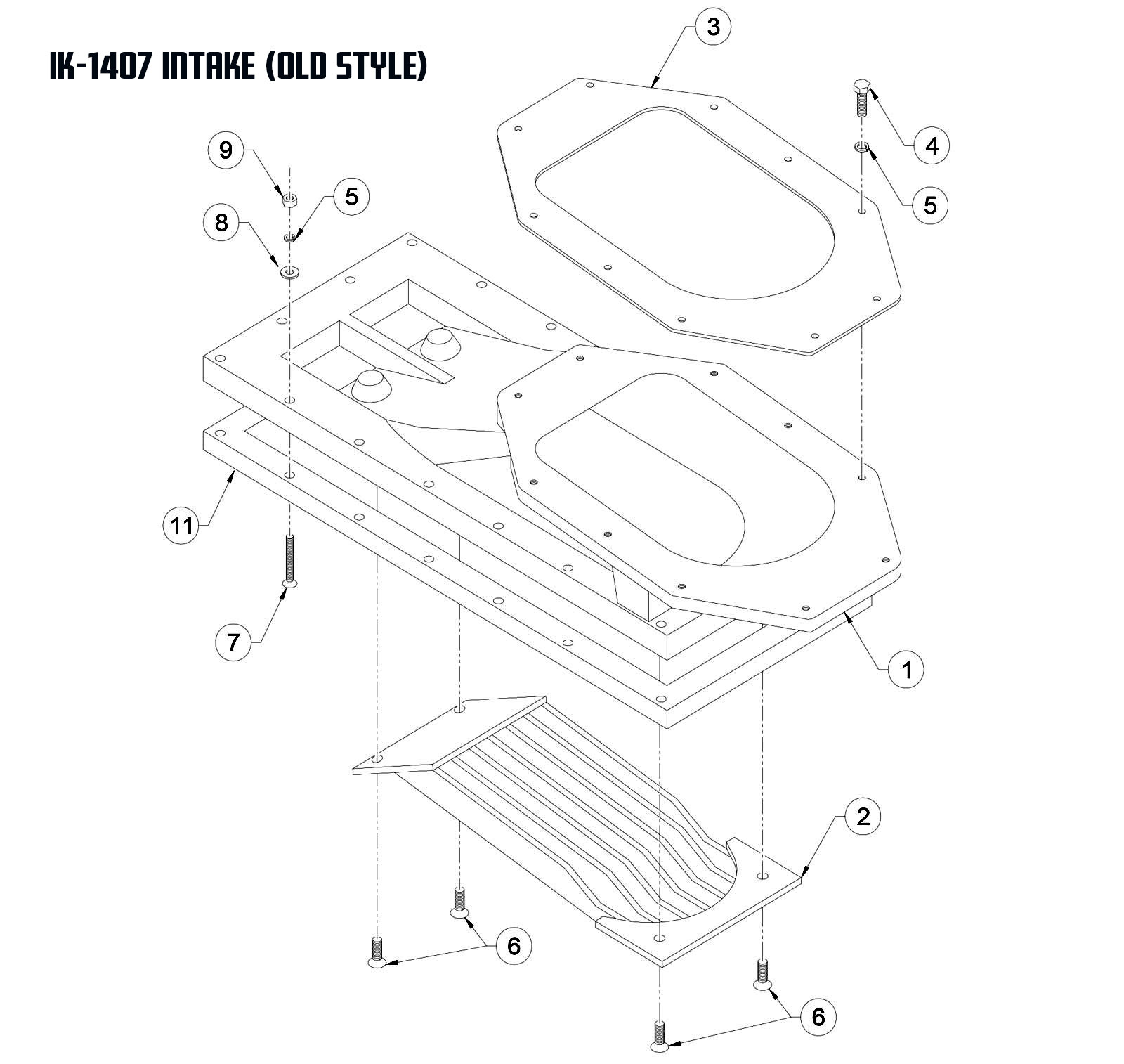

American Turbine Model AT-309 Bolt-In (Old Style) Intake
AT-309 Bolt-In (Old Style)
PART #IK-1407
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
INTAKE |
1
|
152-IK1407 |
|
2
|
GRATE |
1
|
152-I4107 |
|
3
|
GASKET |
1
|
152-G1001 |
|
4
|
HHCS, 5/16-18 X 1-1/4 |
10
|
152-F05 18 10 HH |
|
5
|
LOCKWASHER, 5/16 |
10
|
152-F05 LW |
|
6
|
FHMS, 5/16-18 X 3/4 |
4
|
152-F05 18 06 FH |
|
7
|
FHMS, 1/4-20 X 2 |
18
|
152-F04 20 16 FH |
|
8
|
AN WASHER, 1/4 |
18
|
152-F04 AN |
|
9
|
LOCKWASHER, 1/4 |
18
|
152-F04 LW |
|
10
|
HEX NUT, 1/4-20 |
18
|
152-F04 20 HN |
|
11
|
GASKET |
1
|
152-G5001 |
