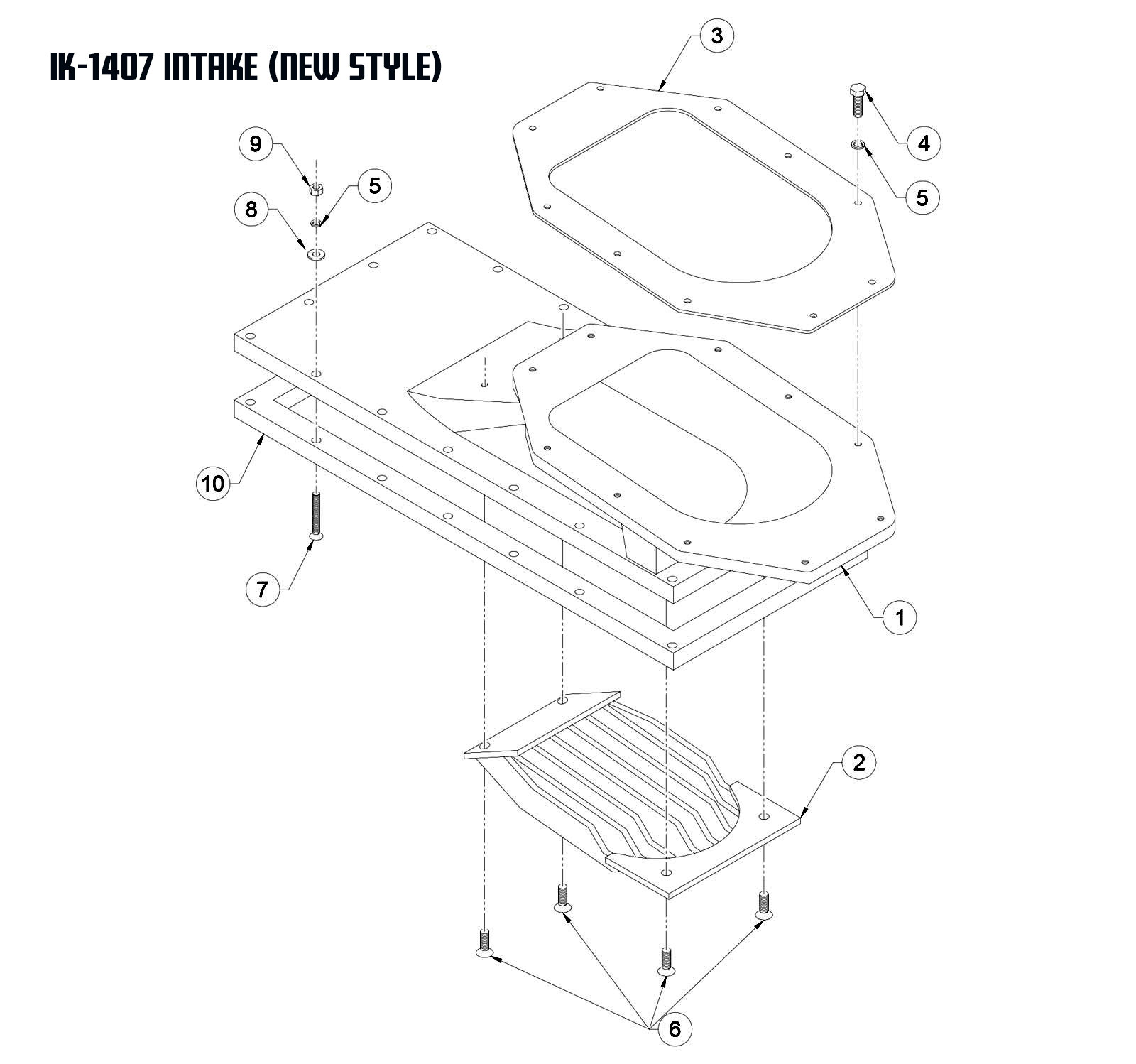

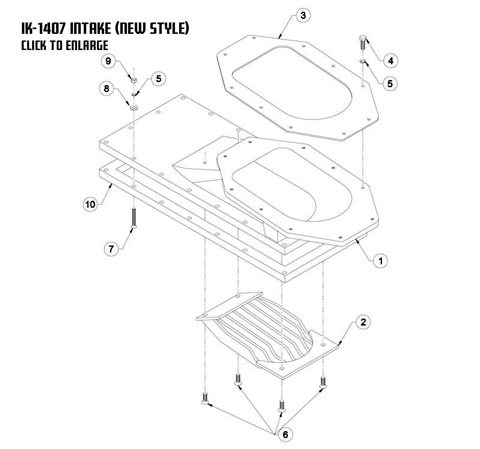

American Turbine Model AT-309 Bolt-In Intakes (New Style)

AT-309 Bolt-In (New Style)

PART #IK-1407

SYM.
DESCRIPTION
QTY.
PART NO.
1
INTAKE
1
152-IK1407
2
GRATE
1
152-I4108
3
GASKET
1
152-G1001
4
HHCS, 5/16-18 X 1-1/4
10
152-F05 18 10 HH
5
LOCKWASHER, 5/16
26
152-F05 LW
6
FHMS, 5/16-18 X 3/4
4
152-F05 18 06 FH
7
FHMS, 5/16-18 X 2
16
152-F05 18 16 FH
8
NEOBOND WASHER, 5/16
16
152-F05 NW
9
HEX NUT, 5/16-18
16
152-F05 18 HN
10
GASKET
1
152-G5001
