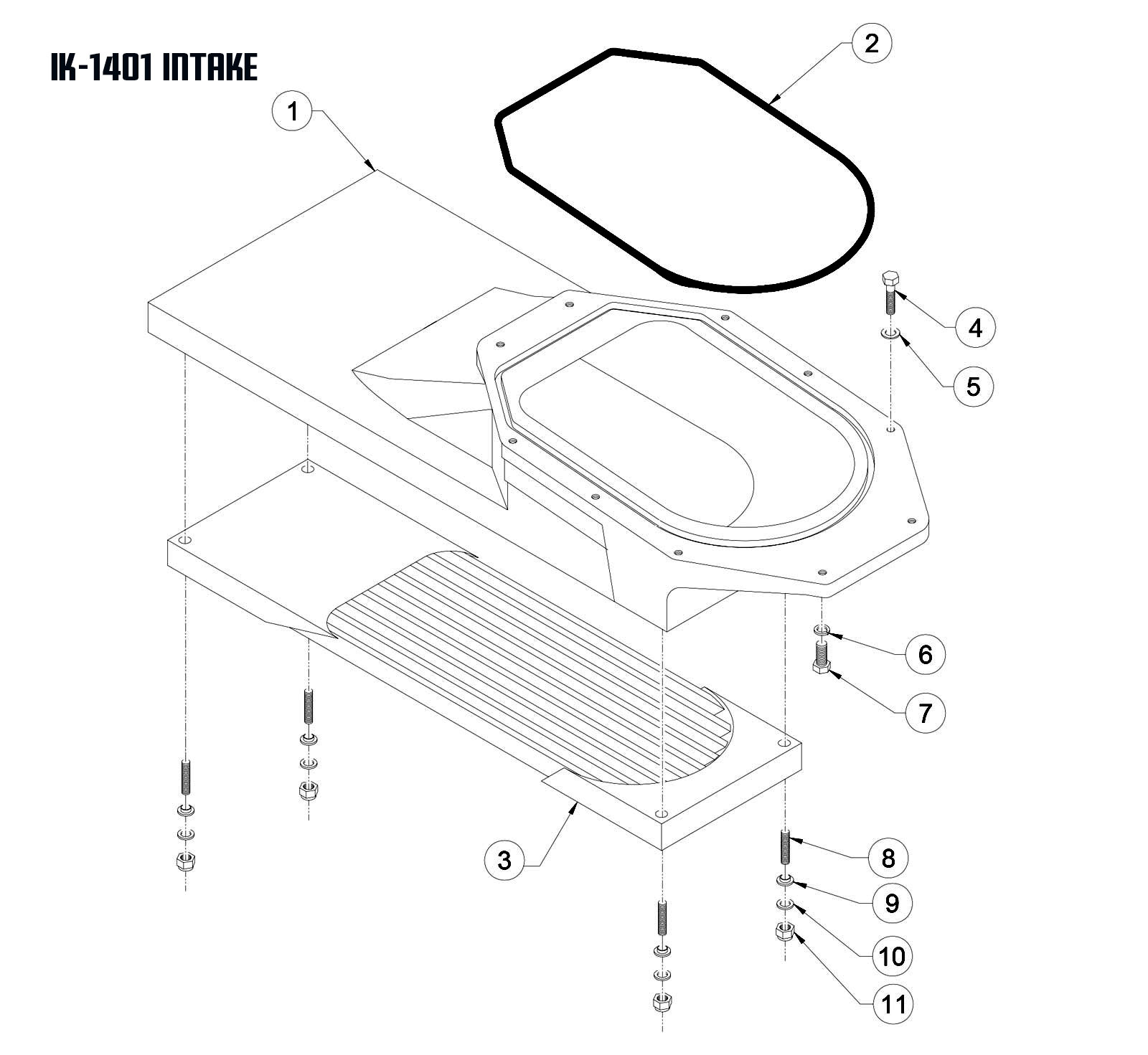

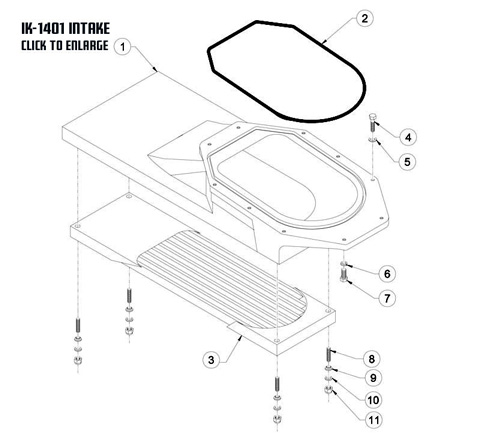

American Turbine Model SD-312 Weld-In Intakes



SD-312 Weld-In

PART # IK-1401

SYM.
DESCRIPTION
QTY.
PART NO.
1
INTAKE
1
152-IK1401
2
O-RING
1
152-O3901
3
GRATE
1
152-I4401
4
HHCS, 5/16-18 X 1-1/4
8
152-F05 18 10 HH
5
LOCKWASHER, 5/16
8
152-F05 LW
6
LOCKWASHER, 5/16
2
152-F05 LW
7
HHCS, 5/16-18 X 1-1/4
2
152-F05 18 10 HH
8
SET SCREW, 5/16-18 X 1-1/2
4
152-F05 18 12 SS
9
PLASTIC BUSHING
4
152-M4301
10
LOCKNUT, 5/16-18
4
152-F05 18 LN
11
AN WASHER, 5/16
4
152-F05 AN
