American Turbine Model SD-309 Weld-In (New Style) Intake
SD-309 Weld-In (New Style)

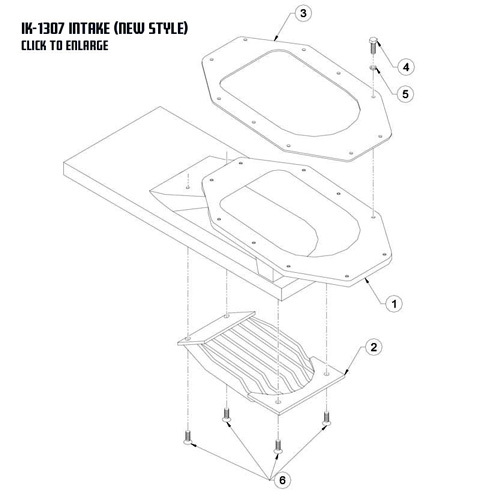

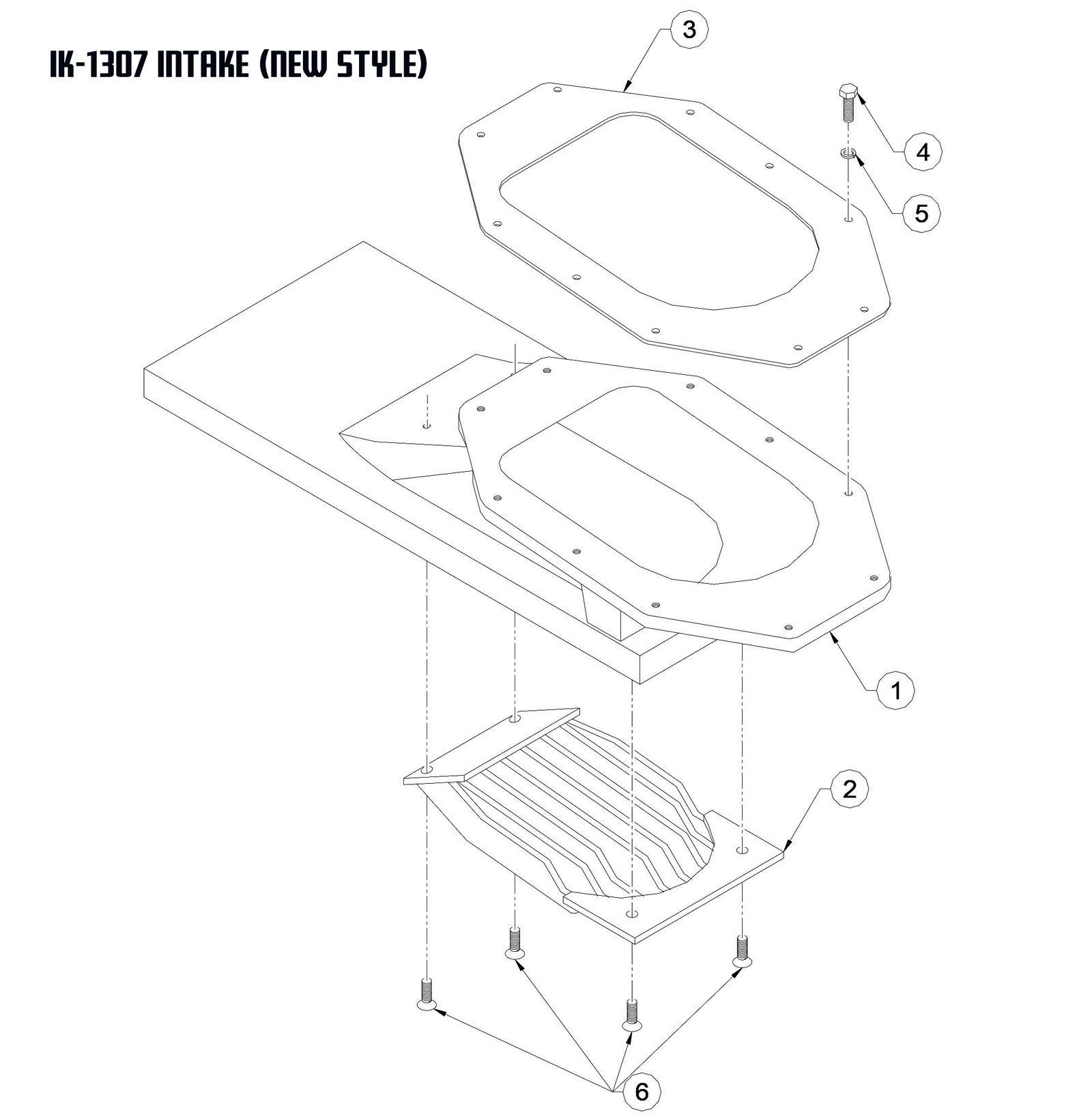

PART # IK-1307 (New Style)
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
INTAKE |
1
|
152-I1307 |
|
2
|
GRATE |
1
|
152-I4108 |
|
3
|
GASKET |
1
|
152-G1001 |
|
4
|
HHCS, 5/16-18 X 1-1/4 |
10
|
152-F05 18 10 HH |
|
5
|
LOCKWASHER, 5/16 |
10
|
152-F05 LW |
|
6
|
FHMS, 5/16-18 X 3/4 |
4
|
152-F05 18 06 FH |
