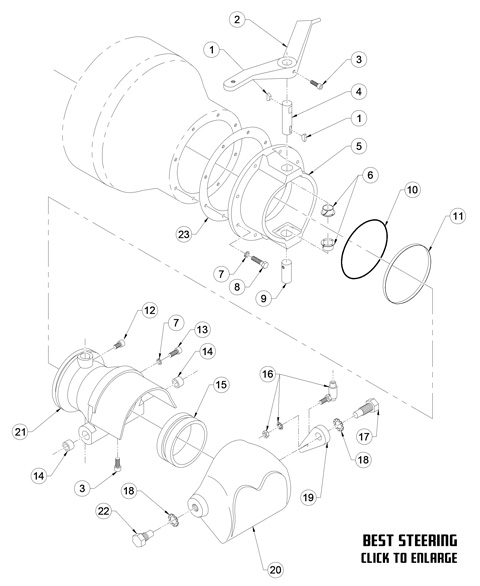

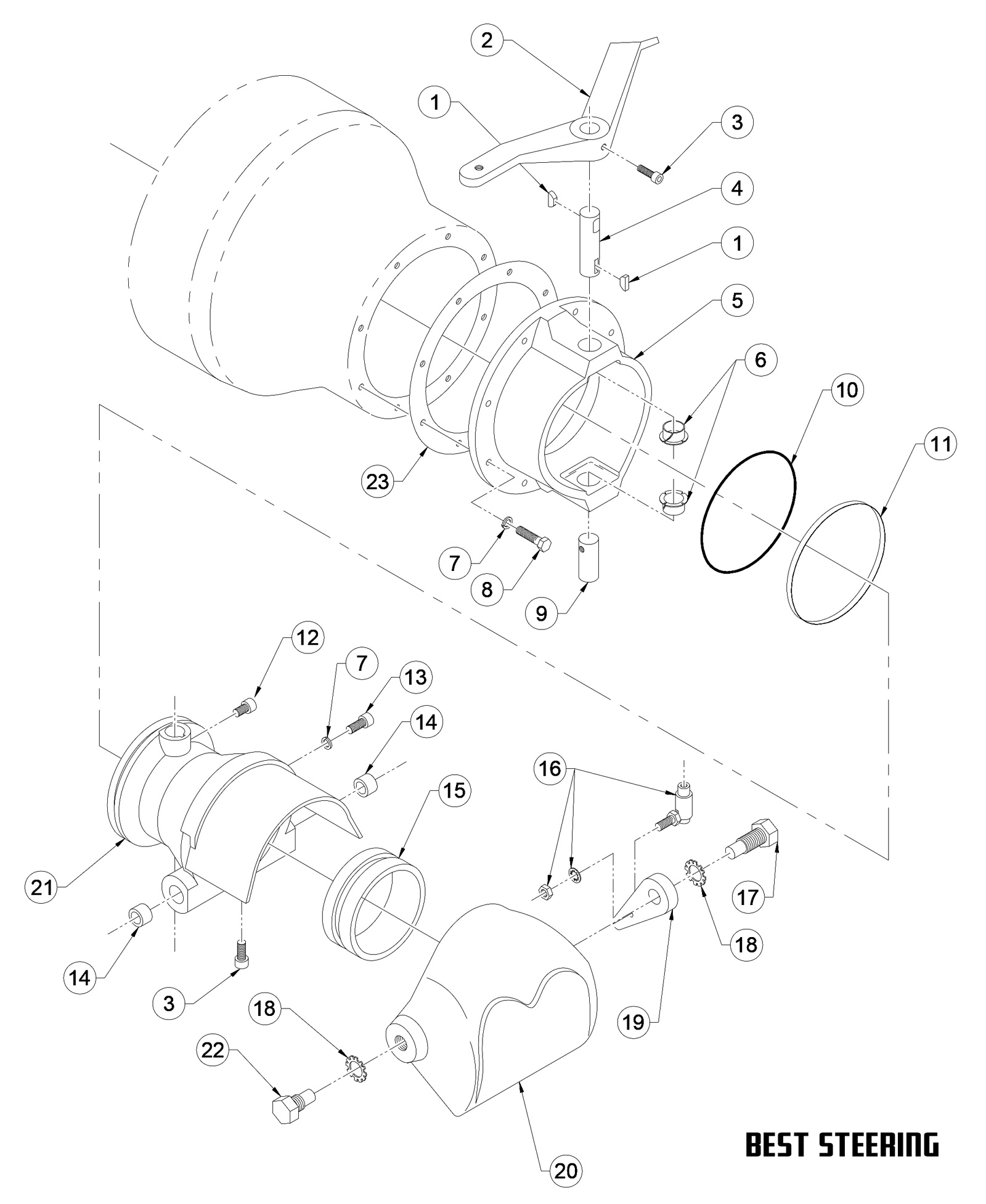

American Turbine Model Best Steering
Best Steering
PART # BNA1407
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
WOODRUFF KEY #9 |
2
|
152-R5507 |
|
2
|
TILLER ARM |
1
|
152-R3001 |
|
3
|
SHCS, 5/16-18 X 3/4 |
2
|
152-F05 18 06 SH |
|
4
|
UPPER TILLER PIN |
1
|
152-BN2410 |
|
5
|
NOZZLE HOUSING |
1
|
152-R1007 |
|
6
|
NYLINER BEARING 3/4 X 3/4 |
2
|
152-B2007 |
|
7
|
LOCKWASHER, 5/16 |
8
|
152-F05 LW |
|
8
|
HHCS, 5/16-18 X 1-1/4 |
8
|
152-F05 18 10 HH |
|
9
|
LOWER PIN |
1
|
152-BN2510 |
|
10
|
O-RING |
1
|
152-01505 |
|
11
|
RUBBER BAND (OPTIONAL) |
1
|
** |
|
12
|
SHCS, 5/16-18 X 1/2 |
1
|
152-F05 18 04 SH |
|
13
|
SHCS, 5/16-18 X 1 |
3
|
152-F05 18 08 SH |
|
14
|
PLASTIC BUSHING |
2
|
152-BN2010 |
|
15
|
NOZZLE INSERT |
1
|
152-R710** |
|
16
|
CABLE PIVOT (NLA) |
1
|
152-BN1910 |
|
17
|
RIGHT SIDE BOLT |
1
|
152-BN2110 |
|
18
|
LOCKWASHER |
2
|
152-BN2310 |
|
19
|
LEVER |
1
|
152-BN1810 |
|
20
|
REVERSE BUCKET |
1
|
152-BN1610 |
|
21
|
NOZZLE |
1
|
152-BNA1511 |
|
22
|
LEFT SIDE BOLT |
1
|
152-BN2210 |
|
23
|
NOZZLE HOUSING GASKET |
1
|
152-G2507 |
