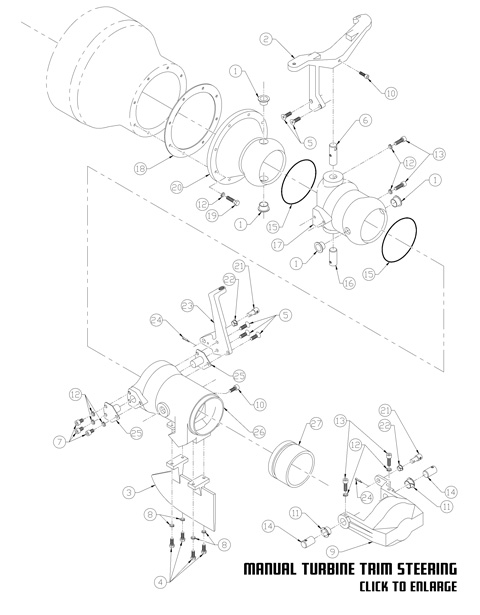

American Turbine Model Manual Turbine Trim Steering
Manual Turbine Trim Steering
PART #RA8107
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
---|---|---|---|
1
|
BRASS BUSHING |
4
|
152-B2201 |
2
|
TILLER ARM |
1
|
152-R3101 |
3
|
RUDDER |
1
|
152-R2505 |
4
|
CLEVIS PIN, 1/4 |
4
|
152-F04 20 06 HH |
5
|
FHMS, 5/16-18 X 1 |
5
|
152-F05 18 08 FH |
6
|
UPPER TILLER PIN |
1
|
152-R3601 |
7
|
SHCS, 5/16-18 X 1/2 |
3
|
152-F05 18 04 SH |
8
|
LOCKWASHER, 1/4 |
4
|
152-F04 LW |
9
|
REVERSE BUCKET |
1
|
152-R2101 |
10
|
SHCS, 5/16-18 X 3/4 |
2
|
152-F05 18 06 SH |
11
|
NYLINER BUSHING 1/2 |
2
|
152-B2101 |
12
|
LOCK WASHER, 5/16 |
15
|
152-F05 LW |
13
|
SHCS, 5/16-18 X 1 |
4
|
152-F05 18 08 SH |
14
|
REVERSE BUCKET PIN |
2
|
152-R4601 |
15
|
NOZZLE O-RING |
2
|
152-O1401 |
16
|
LOWER PIN |
1
|
152-R3701 |
17
|
STEERING NOZZLE |
1
|
152-R1401 |
18
|
NOZZLE HOUSING GASKET |
1
|
152-G2507 |
19
|
HHCS, 5/16-18 X 1-1/4 |
8
|
152-F05 18 10 HH |
20
|
SHORT SNOOT |
1
|
152-R6101 |
21
|
REVERSE PIVOT PIN |
1
|
152-R5005 |
22
|
3/8 NYLINER |
2
|
152-B2105 |
23
|
UP /DOWN LEVER |
1
|
152-R3901 |
24
|
COTTER PIN |
2
|
152-F02 06 CP |
25
|
PIN, UP/ DOWN |
2
|
152-RA4701 |
26
|
NOZZLE |
1
|
152-R1901 |
27
|
NOZZLE INSERT |
1
|
152-R700** |
