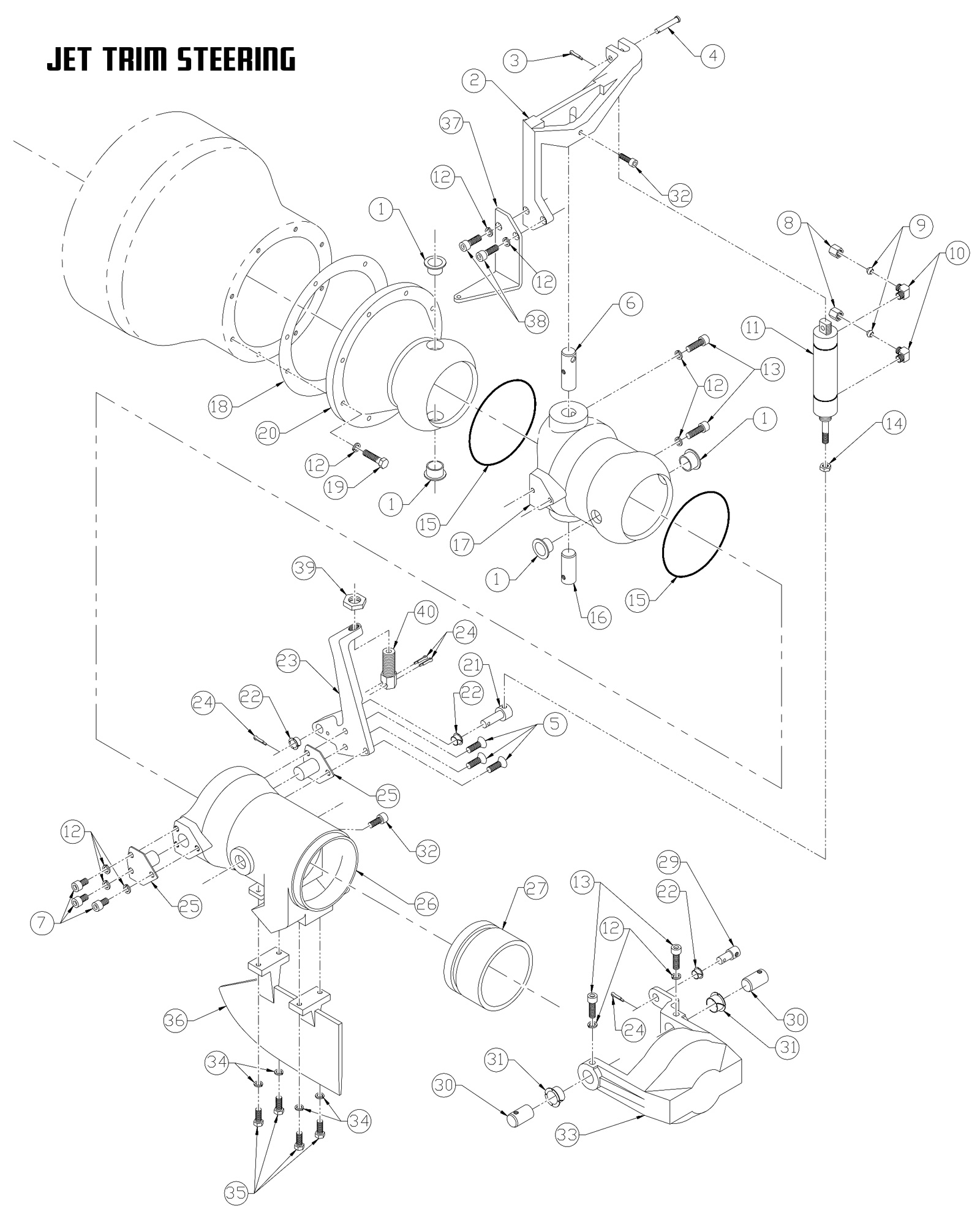

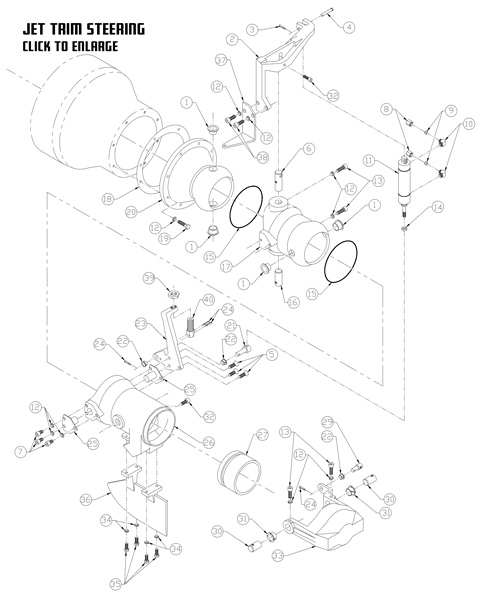

American Turbine Model FW-309 Turbine Trim Steering
FW-309 Turbine Trim Steering
PART #RA8507
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
BRASS BUSHING |
4
|
152-B2201 |
|
2
|
TILLER ARM |
1
|
152-R3201 |
|
3
|
COTTER PIN, 1/8 X 3/4 |
1
|
152-F02 06 CP |
|
4
|
CLEVIS PIN, 1/4 |
1
|
152-F04 CL |
|
5
|
FHMS, 5/16-18 X 1 |
3
|
152-F05 18 08 FH |
|
6
|
UPPER TILLER PIN |
1
|
152-R3601 |
|
7
|
SHCS, 5/16-18 X 1/2 |
3
|
152-F05 18 04 SH |
|
8
|
BRASS FITTING |
2
|
152-R8307 |
|
9
|
BRASS FITTING |
2
|
152-R8307 |
|
10
|
BRASS FITTING |
2
|
152-R8307 |
|
11
|
HYDRAULIC CYLINDER |
1
|
152-R7201 |
|
12
|
LOCK WASHER, 5/16 |
17
|
152-F05 LW |
|
13
|
SHCS, 5/16-18 X 1 |
4
|
152-F05 18 08 SH |
|
14
|
5/16-24 JAMB NUT |
1
|
152-F05 24 JN |
|
15
|
NOZZLE O-RING |
2
|
152-O1401 |
|
16
|
LOWER PIN |
1
|
152-R3701 |
|
17
|
STEERING NOZZLE |
1
|
152-R1401 |
|
18
|
NOZZLE HOUSING GASKET |
1
|
152-G2507 |
|
19
|
HHCS, 5/16-18 X 1-1/4 |
8
|
152-F05 18 10 HH |
|
20
|
SHORT SNOOT |
1
|
152-R6101 |
|
21
|
PIN HYDRAULIC PIVOT |
1
|
152-R5201 |
|
22
|
3/8 NYLINER |
3
|
152-B2105 |
|
23
|
UP /DOWN LEVER |
1
|
152-R3801 |
|
24
|
COTTER PIN, 1/8 X 3/4 |
2
|
152-F02 06 CP |
|
25
|
PIN, UP/DN |
2
|
152-RA4701 |
|
26
|
NOZZLE |
1
|
152-R1901 |
|
27
|
NOZZLE INSERT |
1
|
152-R700** |
|
29
|
REVERSE PIVOT PIN |
1
|
152-R5108 |
|
30
|
REVERSE BUCKET PIN |
2
|
152-R3701 |
|
31
|
NYLINER BUSHING 1/2 |
2
|
152-B2101 |
|
32
|
SHCS, 5/16-18 X 3/4 |
2
|
152-F05 18 06 SH |
|
33
|
REVERSE BUCKET |
1
|
152-R2101 |
|
34
|
LOCKWASHER, 1/4 |
4
|
152-F04 LW |
|
35
|
HHCS, 1/4-20 X 3/4 |
4
|
152-F04 20 06 HH |
|
36
|
RUDDER |
1
|
152-R2505 |
|
37
|
TILLER BRACKET |
1
|
152-R3401 |
|
38
|
SHCS, 5/16-18 X 1-1/4 |
2
|
152-F05 18 10 SH |
|
39
|
JAMB NUT |
1
|
152-F12 16 JN |
|
40
|
3/4-16 CABLE ADAPTER |
1
|
152-R9208 |
