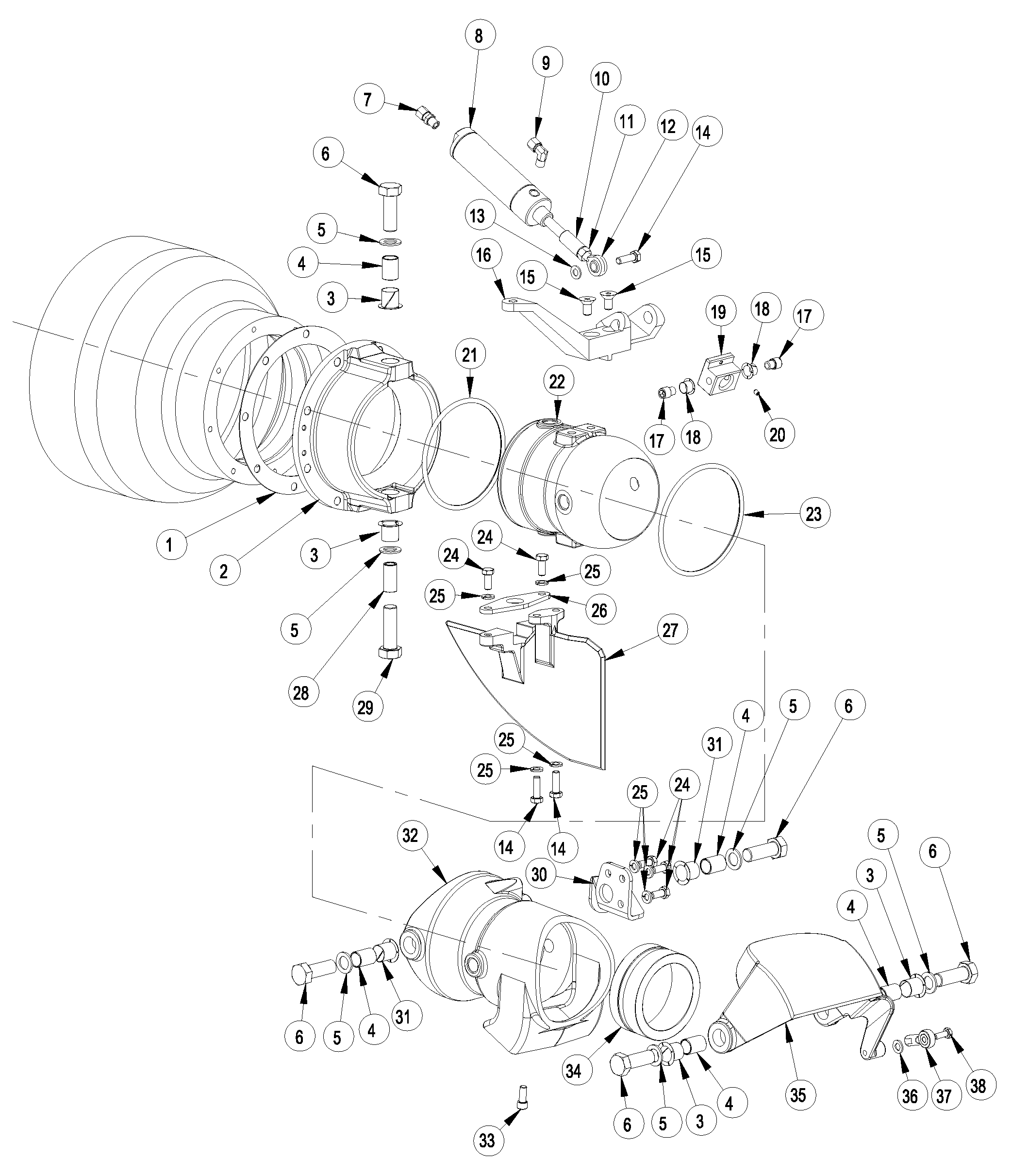

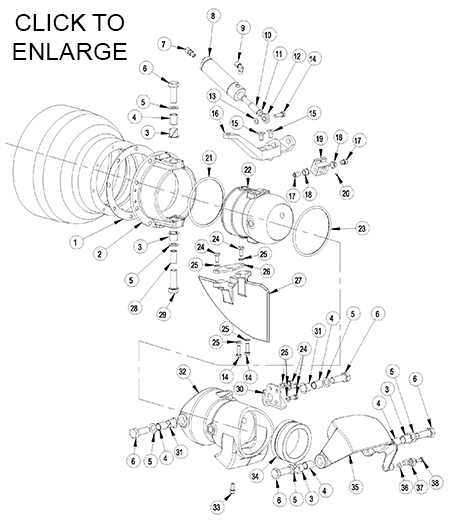

American Turbine Model Jet Trim Steering
Jet Trim Steering
PART #JTA8507
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
NOZZLE HOUSING GASKET |
1
|
152-G2507 |
|
2
|
NOZZLE HOUSING |
1
|
152-R1007 |
|
3
|
NYLINER, 3/4 |
4
|
152-B2007 |
|
4
|
BOLT BUSHING |
5
|
152-RS2131 |
|
5
|
THICK WASHER, 5/8 |
6
|
152-F10 TW |
|
6
|
HHCS, 5/8-11 X 1-3/4 |
5
|
152-F10 11 14 HH |
|
7
|
STRAIGHT FITTING |
1
|
152-JT7311 |
|
8
|
HYDRAULIC CYLINDER |
1
|
152-JT7211 |
|
9
|
90 DEGREE BRASS FITTING |
1
|
152-R8307 |
|
10
|
STOP SLEEVE |
1
|
152-JT0002 |
|
11
|
5/16-24 JAMB NUT |
1
|
152-F05 24 JN |
|
12
|
MALE ROD END, 5/16-24 |
1
|
152-F05 24 MRE |
|
13
|
AN WASHER, 5/16 |
1
|
152-F05 AN |
|
14
|
HHCS, 5/16-18 X 1 |
3
|
152-F05 18 08 HH |
|
15
|
FHCS, 3/8-16 X 1-1/2 |
2
|
152-F06 16 12 FH |
|
16
|
TILLER ARM |
1
|
152-JT3111 |
|
17
|
SHCS, 3/8-16 X 3/8 NYLINER BUSHING |
2
|
152-F06 16 03 SH |
|
18
|
SPLIT HYD. CYLINDER |
2
|
152-B2102 |
|
19
|
PIVOT BLOCK |
1
|
152-JT1011 |
|
20
|
10-32 X 3/8 SET SCREW |
1
|
152-F03 32 03 SS |
|
21
|
NOZZLE O-RING |
1
|
152-O1505 |
|
22
|
STEERING NOZZLE |
|
152-JT1411 |
|
23
|
ENCAPSULATED O-RING |
1
|
152-O1501 |
|
24
|
HHCS, 5/16-18 X 3/4 |
5
|
152-F05 18 06 HH |
|
25
|
LOCKWASHER, 5/16 |
7
|
152-F05 LW |
|
26
|
RUDDER PIVOT BRACKET |
1
|
152-JT0005 |
|
27
|
RUDDER |
1
|
152-JT2401 |
|
28
|
LOWER PIVOT BUSHING |
1
|
152-JT0001 |
|
29
|
HHCS, 5/8-11 X 2 |
1
|
152-F10 11 16 HH |
|
30
|
REVERSE CABLE BRACKET |
1
|
152-JT0004 |
|
31
|
NYLINER BUSHING, 1/2 LONG |
2
|
152-B2101 |
|
32
|
NOZZLE |
1
|
152-JT1911 |
|
33
|
SHCS, 5/16-18 X 3/4 |
1
|
152-F05 18 06 SH |
|
34
|
NOZZLE INSERT |
1
|
152-R73** |
|
35
|
REVERSE BUCKET |
1
|
152-JT2111 |
|
36
|
AN WASHER |
1
|
152-F04 AN |
|
37
|
1/4 FEMALE ROD END |
1
|
152-F04 28 FRE |
|
38
|
1/4-28 HHCS, 1/4-20 X 1 |
1
|
152-F04 20 08 HH |
