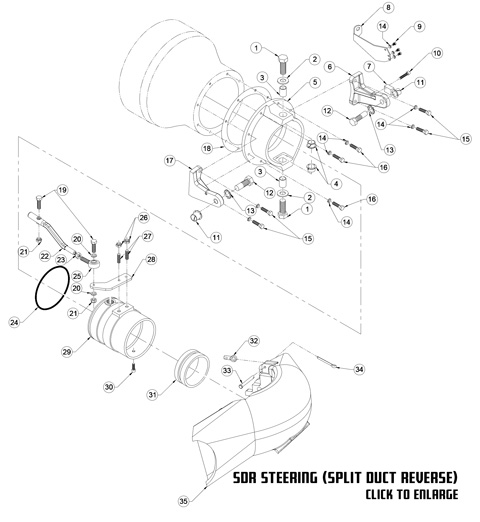

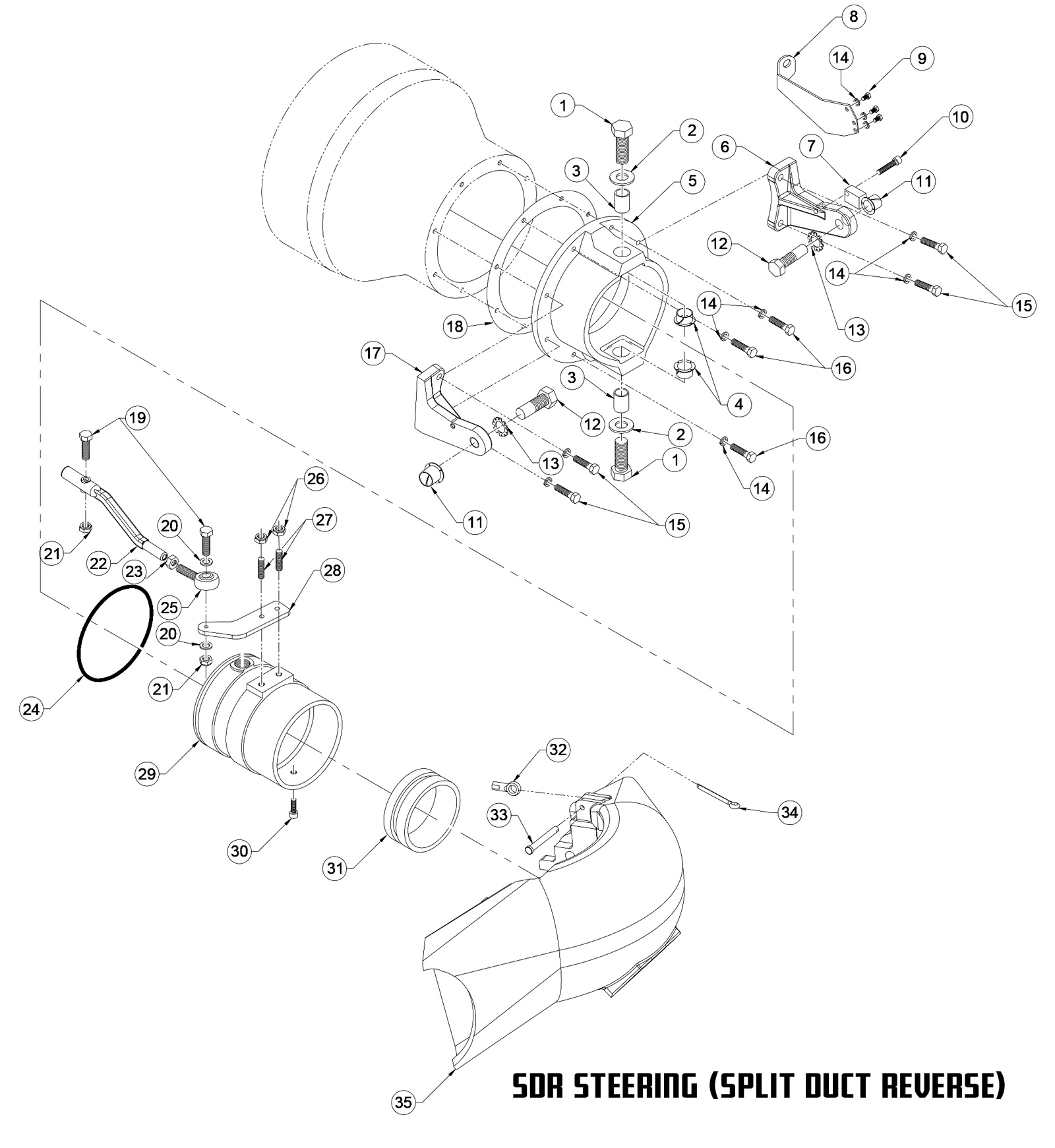

American Turbine Model SDR Steering (Split Duct Reverse)
SDR Steering (Split Duct Reverse)
PART #SRK2101
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
HHCS, 5/8-11 X 1-3/4 |
2
|
152-F10 11 14 HH |
|
2
|
THICK WASHER, 5/8 |
2
|
152-F10TW |
|
3
|
BOLT BUSHING, 5/8 |
2
|
152-RS2131 |
|
4
|
NYLINER BUSHING, 3/4 |
2
|
152-B2007 |
|
5
|
NOZZLE HOUSING |
1
|
152-R1007 |
|
6
|
BUCKET BRACKET (RIGHT) |
1
|
152-SR4001R |
|
7
|
REVERSE BUCKET STOP |
1
|
152-SR5101 |
|
8
|
SHIFT CABLE BRACKET |
1
|
152-SR2005 |
|
9
|
HHCS, 5/16-18 X 3/4 |
3
|
152-F05 18 06 HH |
|
10
|
SHCS, 1/4-20 X 7/8 |
1
|
152-F04 20 07 SH |
|
11
|
1/2 X 1/2 NYLINER BUSHING |
2
|
152-B2501 |
|
12
|
REVERSE BUCKET BOLT |
2
|
152-BN2210 |
|
13
|
STAR LOCK WASHER, 5/8 |
2
|
152-F10 SW |
|
14
|
LOCKWASHER, 5/16 |
1
|
152-F05 LW |
|
15
|
HHCS, 5/16-18 X 1-3/4 |
4
|
152-F05 18 14 HH |
|
16
|
HHCS, 5/16-18 X 1-1/4 |
4
|
152-F05 18 10 HH |
|
17
|
BUCKET BRACKET (LEFT) NOZZLE HOUSING GASKET |
1
|
152-SR4001L |
|
18
|
NOZZLE HOUSING GASKET |
1
|
152-G2507 |
|
19
|
HHCS, 3/8-24 X 1-1/4 |
2
|
152-F06 24 10 HH |
|
20
|
AN FLAT WASHER, 3/8 |
2
|
152-F06 AN |
|
21
|
3/8-24 THIN LOCK NUT |
2
|
152-F06 24 TL |
|
22
|
OFF-SET STEERING EXT. |
1
|
152-SR6001 |
|
23
|
HEX NUT, 3/8-24 |
1
|
152-F06 24 HN |
|
24
|
NOZZLE O-RING |
1
|
152-O1505 |
|
25
|
MALE ROD END, 3/8-24 |
1
|
152-F06 24 MRE |
|
26
|
LOCK NUT, 5/16-18 |
2
|
152-F05 18 LN |
|
27
|
SET SCREW, 5/16-18 X 1-1/2 |
2
|
152-F05 18 12 SS |
|
28
|
TILLER ARM |
1
|
152-SR3001 |
|
29
|
NOZZLE |
1
|
152-R2001 |
|
30
|
HHCS, 5/16-18 X 1 |
1
|
152-F05 18 10 HH |
|
31
|
NOZZLE INSERT |
1
|
152-R73** |
|
32
|
FEMALE ROD END, 1/4-20 |
1
|
152-F04 20 FRE |
|
33
|
CLEVIS PIN, 1/4 |
1
|
152-F04 CL |
|
34
|
COTTER PIN, 5/64 X 3/4 |
1
|
152-F01 06 CP |
|
35
|
REVERSE BUCKET |
1
|
152-SR2101 |
