American Turbine Model SD-309 Jet

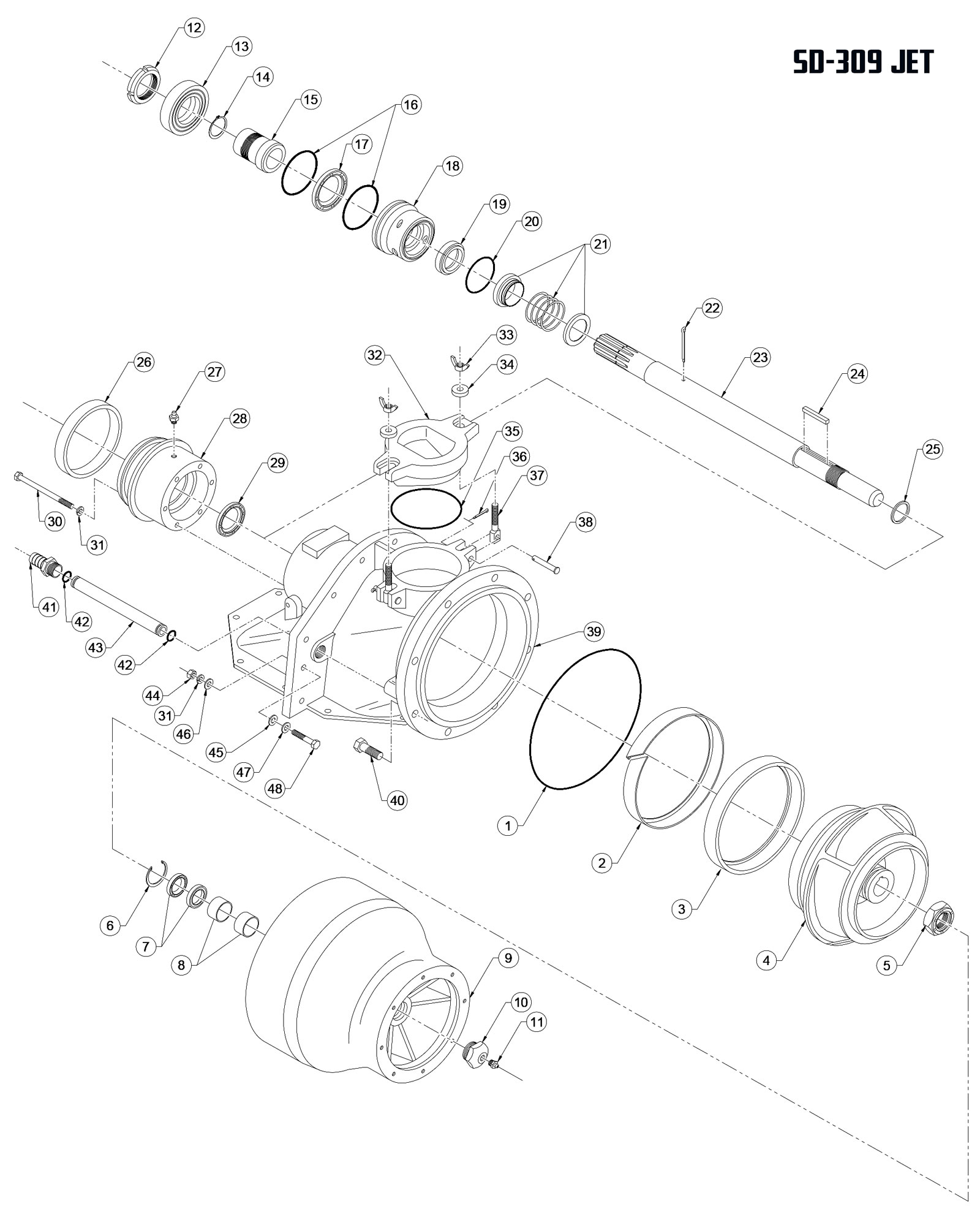

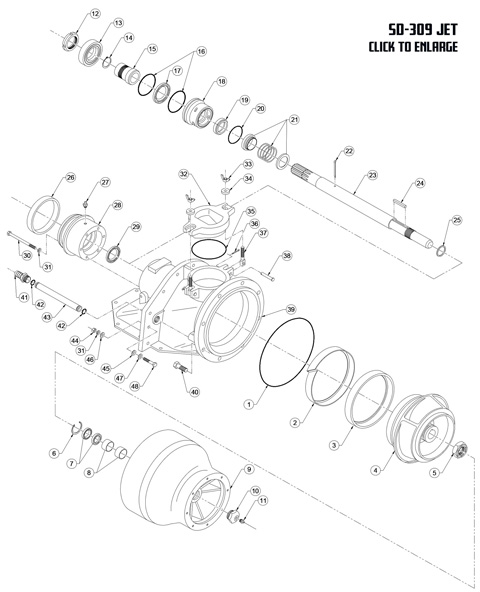

Model SD-309 JET
Just looking for a overhaul kit? Click Here
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
BOWL O-RING |
1
|
152-O3101 |
|
2
|
WEAR RING LINER |
1
|
152-WR6004 |
|
3
|
WEAR RING |
1
|
152-WR5000 |
|
4
|
IMPELLER |
1
|
152-IMA*** |
|
5
|
IMPELLER NUT |
1
|
152-SH3507 |
|
6
|
BOWL SNAP RING |
1
|
152-SC9201 |
|
7
|
BOWL SEALS |
2
|
152-SL2003 |
|
8
|
BOWL BEARINGS |
2
|
152-B1502 |
|
9
|
BOWL |
1
|
152-SCA9301 |
|
10
|
BOWL PLUG |
1
|
152-SCA9001 |
|
11
|
GREASE ZERT |
1
|
152-SC8901 |
|
12
|
BEARING SLEEVE NUT |
1
|
152-SH5101 |
|
13
|
BEARING |
1
|
152-B1101 |
|
14
|
SNAP RING |
1
|
152-SH1507 |
|
15
|
BEARING SLEEVE |
1
|
152-SH5001 |
|
16
|
O-RING BEARING HOUSING |
2
|
152-O3301 |
|
17
|
SEAL FACE HOUSING SEAL |
1
|
152-SL1201 |
|
18
|
SEAL FACE HOUSING |
1
|
152-SH5201 |
|
19
|
CERAMIC SEAL |
1
|
152-SL4008 |
|
20
|
O-RING SEAL FACE HOUSING |
1
|
152-O3401 |
|
21
|
MECHANICAL SEAL |
1
|
152-SL4008 |
|
22
|
COTTER PIN, 5/32 X 2 |
1
|
152-F03 16 CP |
|
23
|
SD SHAFT |
1
|
152-SH1207 |
|
24
|
IMPELLER KEY |
1
|
152-SH3007 |
|
25
|
SHIM KIT |
1
|
152-SHK4007 |
|
26
|
ENGINE MOUNT RING |
1
|
152-SC4007 |
|
27
|
GREASE ZERT |
1
|
152-SC8901 |
|
28
|
BEARING HOUSING |
1
|
152-SC2101 |
|
29
|
BEARING HOUSING SEAL |
1
|
152-SL1101 |
|
30
|
HHCS, 5/16-18 X 4-1/2 |
6
|
152-F05 18 36 HH |
|
31
|
LOCKWASHER, 5/16 |
16
|
152-F05 LW |
|
32
|
HAND HOLE COVER |
1
|
152-SC1701 |
|
33
|
WING NUT, 3/8-16 |
2
|
152-F06 16 WN |
|
34
|
THICK WASHER, 3/8 |
2
|
152-F06 TW |
|
35
|
HAND HOLE COVER O-RING |
1
|
152-O1002 |
|
36
|
COTTER PIN, 1/8 X 1/2 |
2
|
152-F02 04 CP |
|
37
|
EYE BOLT, 3/8-16 |
2
|
152-F06 16 EB |
|
38
|
CLEVIS PIN, 5/16 |
2
|
152-F05 CL |
|
39
|
SUCTION PIECE |
1
|
152-SC1301 |
|
40
|
HHCS, 1/2-13 1-1/2 |
8
|
152-F08 13 12 HH |
|
41
|
BARBED CONNECTOR, 3/4 |
1
|
152-SC4607 |
|
42
|
COOLING TUBE ORING |
2
|
152-O3201 |
|
43
|
WATER TUBE |
1
|
152-SC4401 |
|
44
|
HEX NUT, 5/16-18 |
10
|
152-F05 18 HN |
|
45
|
BOLT INSULATOR, 5/16 |
10
|
152-F05 BI |
|
46
|
NEOBOND WASHER, 5/16 |
10
|
152-F05 NW |
|
47
|
AN WASHER, 5/16 |
10
|
152-F05 AN |
|
48
|
HHCS, 5/16-18 X 1-1/2 |
10
|
152-F05 18 12 HH |
