American Turbine Panther Energizer Kit Replacement Parts

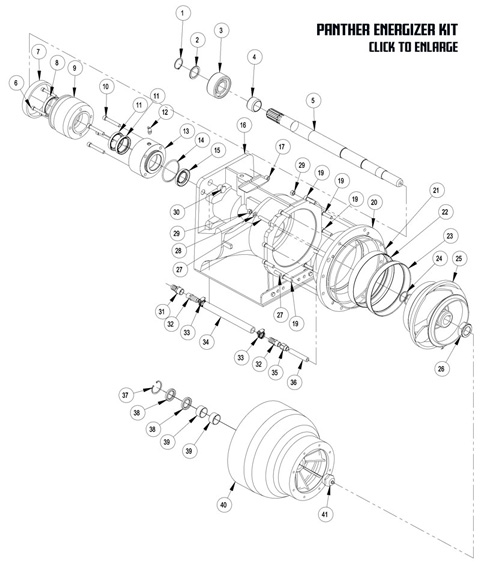

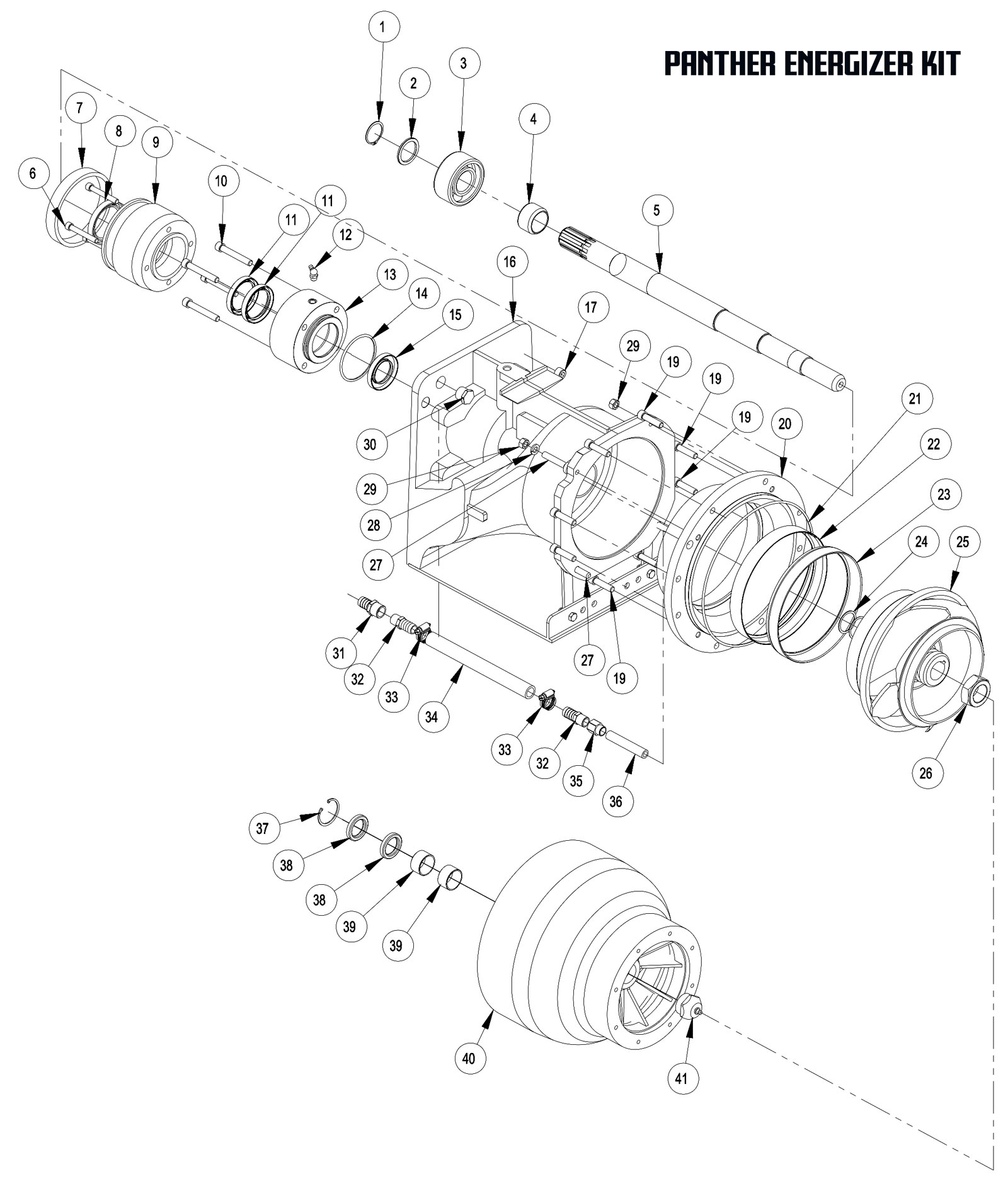

Model Panther Energizer Kit
PART# PK1001
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
---|---|---|---|
1
|
SNAP RING | 1 | 152-SH1507 |
2
|
THRUST WASHER | 1 | 152-SH2005 |
3
|
THRUST BEARING | 1 | 152-B1007 |
4
|
SLINGER RING | 1 | 152-SH2403 |
5
|
SHAFT | 1 | 152-SH1107 |
6
|
5/16-18 X 2-1/4 SHCS | 4 | 152-F05 18 18 SH |
7
|
ENGINE MOUNT RING | 1 | 152-SC4007 |
8
|
BEARING CAP SEAL | 1 | 152-SL1007 |
9
|
BEARING CAP | 1 | 152-SC2209 |
10
|
3/8-16 X 2-1/2 SHCS | 4 | 152-F06 16 20 SH |
11
|
BEARING HOUSING SEAL | 2 | 152-SL1603 |
12
|
45 DEG. GREASE FITTING | 1 | 152-SC8801 |
13
|
BEARING HOUSING | 1 | 152-SC2109 |
14
|
BEARING HOUSING O-RING | 1 | 152-O3108 |
15
|
SUCTION SEAL | 1 | 152-SL1609 |
16
|
SUCTION | 1 | N / A |
17
|
5/8-18 X 3/4 SLOTTED SS | 1 | 152-F10 18 06 SS |
18
|
3/8-16 X 1-1/2 SHCS | 8 | 152-F06 16 12 SH |
19
|
SUCTION PIECE ADAPTER | 1 | 152-SC6009 |
20
|
BOWL O-RING | 1 | 152-O3101 |
21
|
WEAR RING LINER | 1 | 152-WR6004 |
22
|
WEAR RING | 1 | 152-WR5800 |
23
|
IMPELLER SHIMS | 1 | 152-SHK4007 |
24
|
IMPELLER | 1 | 152-IMA*** |
25
|
IMPELLER NUT | 1 | 152-SH3507 |
26
|
3/8-16 X 2 SET SCREW | 4 | 152-F06 16 16 SS |
27
|
3/8 LOCKWASHER | 4 | 152-F06 LW |
28
|
3/8-16 LOCK NUT | 4 | 152-F06 16 HN |
29
|
BRASS HEX PLUG | 1 | 152-SC6309 |
30
|
HOSE BARB | 1 | 152-SC6109 |
31
|
BARBED CONNECTOR (3/8) | 2 | 152-SC4507 |
32
|
HOSE CLAMP | 2 | 152-M4501 |
33
|
COOLING HOSE | 1 | 152-SC6209 |
34
|
WATER ADPT FITTING | 1 | 152-SC6208 |
35
|
BRASS NIPPLE (1/4 X 3) | 1 | 152-SC6108 |
36
|
BOWL SNAP RING | 1 | 152-SC9201 |
37
|
BOWL SEAL | 2 | 152-SL2003 |
38
|
BOWL BEARING | 2 | 152-B1502 |
39
|
BOWL | 1 | 152-SC9501 |
40
|
BOWL PLUG | 1 | 152-SCA9001 |
