American Turbine Model 12-TD Jet (w/ Seal Pak) Replacement Parts

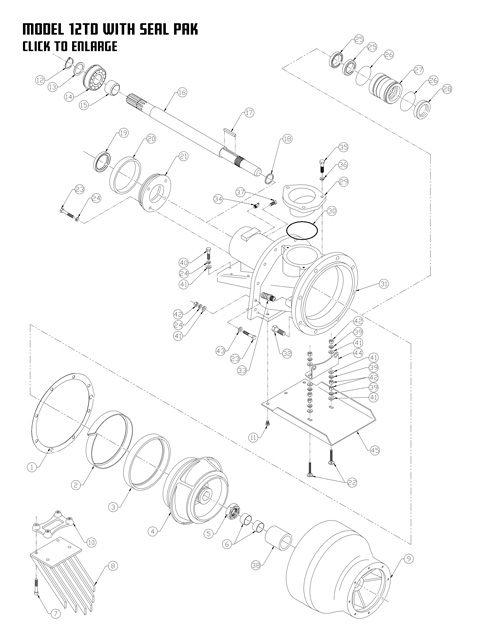

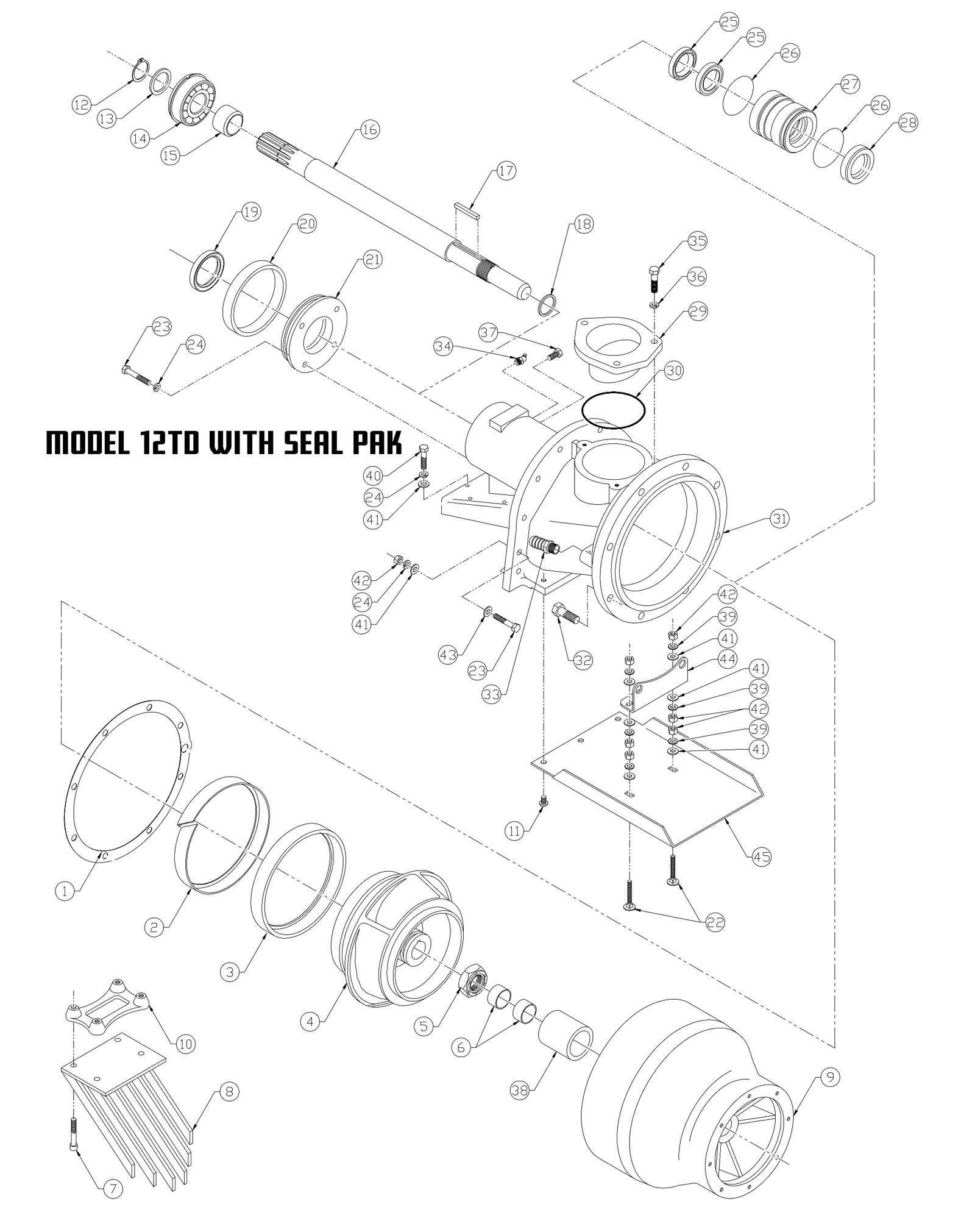

Model 12-TD (w/ Seal Pak)
USED W / SERIAL # 25649 - PRESENT
Just looking for a rebuild kit? Click Here
Or maybe looking for an overhaul kit? Click Here
|
SYM.
|
DESCRIPTION |
QTY.
|
PART NO. |
|---|---|---|---|
|
1
|
BOWL GASKET |
1
|
152-G2006 |
|
2
|
WEAR RING LINER |
1
|
152-WR6004 |
|
3
|
WEAR RING (SEE BELOW) |
1
|
152-WR5*** |
|
4
|
IMPELLER |
1
|
152-IMA*** |
|
5
|
IMPELLER NUT |
1
|
152-SH3507 |
|
6
|
BOWL BEARING |
2
|
152-B1505 |
|
7
|
SHCS, 5/16-18 X 1-1/4 |
4
|
152-F05 18 10 SH |
|
8
|
GRATE |
1
|
152-I4207 |
|
9
|
BOWL |
1
|
152-SCA9103 |
|
10
|
GRATE BACK-UP |
1
|
152-I4307 |
|
11
|
FHMS, 5/16-18 X 3/4 |
3
|
152-F05 18 06 FH |
|
12
|
SNAP RING |
1
|
152-SH1507 |
|
13
|
THRUST WASHER |
1
|
152-SH2005 |
|
14
|
THRUST BEARING |
1
|
152-B1103 |
|
15
|
SLINGER RING |
1
|
152-SH2403 |
|
16
|
PUMP SHAFT |
1
|
152SH1107 |
|
17
|
IMPELLER KEY |
1
|
152-SH3007 |
|
18
|
SHIM KIT |
1
|
152-SHK4007 |
|
19
|
BEARING CAP SEAL |
1
|
152-SL1007 |
|
20
|
ENGINE MOUNT RING |
1
|
152-SC4007 |
|
21
|
5/16-18 X 2 HHCS |
2
|
152-SC2003 |
|
22
|
BEARING CAP FHMS |
2
|
152-F05 18 16 FH |
|
23
|
5/16-18 X 2 |
14
|
152-F05 18 16 HH |
|
24
|
LOCKWASHER, 5/16 |
20
|
152-F05 LW |
|
25
|
SUCTION SEAL |
2
|
152-SL1603 |
|
26
|
SEAL PAK O-RING |
2
|
152-O2103 |
|
27
|
SEAL PAK HOUSING |
1
|
152-SH2303 |
|
28
|
SEAL PAK SEAL |
1
|
152-SL3508 |
|
29
|
HAND HOLE COVER |
1
|
152-SC1703 |
|
30
|
HAND HOLE COVER O-RING |
1
|
152-O1003 |
|
31
|
SUCTION PIECE |
1
|
**** |
|
32
|
HHCS, 1/2-13 X 1-1/2 |
8
|
152-F08 13 12 HH |
|
33
|
BARBED CONNECTOR, 3/8 |
1
|
152-SC4507 |
|
34
|
GREASE ZERT |
1
|
152-SC8801 |
|
35
|
HHCS, 5/16-18 X 1-1/4 |
3
|
152-F05 18 10 HH |
|
36
|
LOCKWASHER, 5/16 |
3
|
152-F05 LW |
|
37
|
HHCS, 3/8-16 X 3/4 |
1
|
152-F06 16 06 HH |
|
38
|
BOWL BEARING, WATER LUBE |
1
|
152-B1603 |
|
39
|
STAR WASHER, 5/16 |
6
|
152-F05 SW |
|
40
|
HHCS, 5/16-18 X 1-1/4 |
6
|
152-F05 18 10 HH |
|
41
|
FLAT WASHER, 5/16 |
22
|
152-F05 FW |
|
42
|
HEX NUT, 5/16-18 |
16
|
152-F05 18 HN |
|
43
|
AN WASHER, 5/16 |
10
|
152-F05 AN |
|
44
|
RIDEPLATE BRACKET |
1
|
152-I7301 |
|
45
|
RIDEPLATE |
1
|
152-I6901 |
